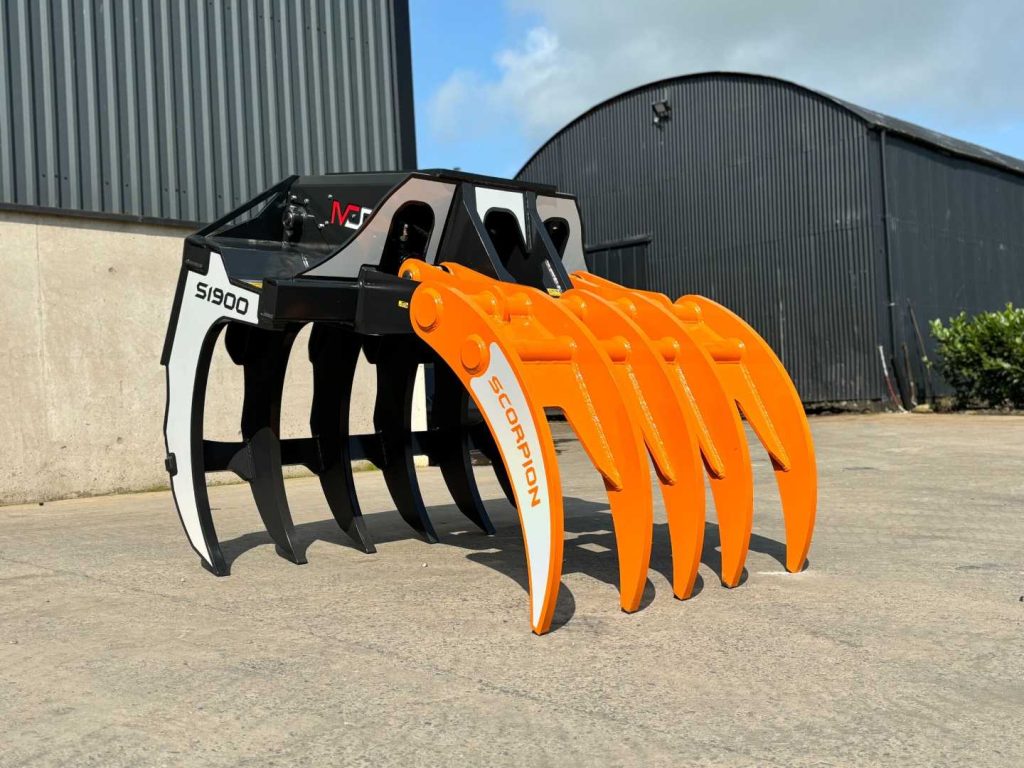

Scorpion S1900

Excavator Grabs

The Scorpion S1900 Excavator Grab is the largest and most powerful model in the Scorpion range, built for extreme material handling. Designed for high-capacity work with large excavators, it delivers unmatched gripping strength and durability, making it the ultimate solution for forestry, demolition, and industrial applications.

Constructed from HARDOX® steel, the S1900 is engineered to perform in the most demanding environments.

Constructed Entirely from HARDOX®: Built for superior strength and durability.
Convenient Greasing Points: Designed for easy maintenance and long-lasting performance.
High-Performance Hydraulic Cylinders: Delivering maximum power and efficiency.
Fast & Simple Setup: Easily connects to auxiliary and hammer pipes for quick operation.

Scorpion S1900 in action

Watch the Scorpion S1900 Excavator Grab in action as it takes on the toughest material handling challenges with ease. Designed for large excavators, this heavy-duty attachment provides exceptional grip, smooth hydraulic control, and maximum efficiency. See how its robust construction and advanced design enhance productivity across demanding industries.

Scorpion S1900 Applications

Demolition & Material Handling: Ideal for demolition projects, loading trailers, and feeding mulchers.
Forestry & Land Clearing: Perfect for picking up trees, pulling roots, and managing overgrown areas.
Agricultural Applications: Efficiently clears farmland, removing stumps, boulders, and unwanted vegetation.
Recycling & Waste Management: Designed for separating materials in recycling plants and waste facilities.
Utilities & Infrastructure Maintenance: Assists in clearing land and maintaining roadside, railway, and canal areas.
Landscaping & Site Preparation: Suitable for both private and commercial landscape maintenance projects.

Scorpion S1900 specifications

Excavator Weight: 1.5t - 4t
Attachment Width: 500mm
Teeth Thickness: 10mm
Teeth Separation:112mm
Teeth Depth: 400mm
Grapple Opening: 670mm
Attachment Weight: 125kg
Attachment Weight With Teeth: N/A
Rotation Weight inc. Hitch: 85kg
Slew Drive Ring Type: SDR-314-001
Pressure (bar): 150 - 200
Flow (litre): 30 - 50

Excavator Weight: 4t - 7t
Attachment Width: 750mm
Teeth Thickness: 15mm
Teeth Separation:160mm
Teeth Depth: 460mm
Grapple Opening: 780mm
Attachment Weight: 270kg
Attachment Weight With Teeth: 290kg
Rotation Weight inc. Hitch: 85kg
Slew Drive Ring Type: SDR-314-001
Pressure (bar): 150 - 200
Flow (litre): 40 - 60

Excavator Weight: 8t - 10t
Attachment Width: 900mm
Teeth Thickness: 20mm
Teeth Separation:200mm
Teeth Depth: 560mm
Grapple Opening: 930mm
Attachment Weight: 410kg
Attachment Weight With Teeth: 430kg
Rotation Weight inc. Hitch: 134kg
Slew Drive Ring Type: SDR-435-001
Pressure (bar): 150 - 200
Flow (litre): 40 - 60

Excavator Weight: 10t - 14t
Attachment Width: 1000mm
Teeth Thickness: 25mm
Teeth Separation:220mm
Teeth Depth: 630mm
Grapple Opening: 1000mm
Attachment Weight: 660kg
Attachment Weight With Teeth: 685kg
Rotation Weight inc. Hitch: 188kg
Slew Drive Ring Type: SDR-523-001
Pressure (bar): 200 - 250
Flow (litre): 60 - 80

Excavator Weight: 14t - 21t
Attachment Width: 1100mm
Teeth Thickness: 30mm
Teeth Separation:230mm
Teeth Depth: 720mm
Grapple Opening: 1300mm
Attachment Weight: 1020kg
Attachment Weight With Teeth: 1045kg
Rotation Weight inc. Hitch: 262kg
Slew Drive Ring Type: SDR-600-001
Pressure (bar): 200 - 250
Flow (litre): 80 - 100

Excavator Weight: 16t - 30t
Attachment Width: 1600mm
Teeth Thickness: 30mm
Teeth Separation:230mm
Teeth Depth: 810mm
Grapple Opening: 1390mm
Attachment Weight: 1600kg
Attachment Weight With Teeth: 1690kg
Rotation Weight inc. Hitch: 331kg
Slew Drive Ring Type: SDR-700-001
Pressure (bar): 200 - 250
Flow (litre): 80 - 100

Excavator Weight: 30t - 50t
Attachment Width: 1900mm
Teeth Thickness: 40mm
Teeth Separation:310mm
Teeth Depth: 1000mm
Grapple Opening: 1560mm
Attachment Weight: 3170kg
Attachment Weight With Teeth: 3170kg
Rotation Weight inc. Hitch: N/A
Slew Drive Ring Type: N/A
Pressure (bar): 200 - 250
Flow (litre): 80 - 120

*All technical details are approximate and subject to change as part of continuous product development.

Why Buy a Scorpion Rake Grab?

Bolt on replaceable teeth — reduce wear and tear, easily maintain the grab and keep downtime to a minimum.
Built Tough, Backed by Hardox® — MDE is Hardox® In My Body certified, ensuring unmatched strength, durability, and performance in every product.
Excavator rated, triple sealed hydraulic cylinders — superior protection from contamination, reduced maintenance, and reliable power in the harshest conditions.
Bolt On Replaceable Hitch — Easily swap hitches to match various machines.
Serviceable design — all key components are replaceable, including bushings, sleeves, pins, and blade, all with easy-access greasing.
Proven durability — MDE has over a decade of production and real-world experience.
Manufactured in Northern Ireland, by MDE Machinery.

Download Our Free Scorpion Grab Range Brochure

Download the Scorpion Excavator Grab brochure for a full breakdown of features, specifications, and optional extras.
