SKB02—SKB23
For excavators weighing 1.5—26 tons
The SKB sorting bucket is designed to more easily get beneath the material intended for sorting.
It has a slightly narrower shape than the Engcon SP sorting bucket and its long base and low side panels make it easier to get beneath e.g. asphalt or other material intended for sorting.
The base ribs run along the length of the bucket, allowing material to slide easily in and out.
The SKB sorting bucket requires no hydraulics and is thus ideal for simple sorting where e.g. finer material is required for backfill or some other use. Cutting steel, lower side plates and ribs consist of high-strength wear steel with hardness of up to 500 brinels, which guarantees high efficiency and long service life.

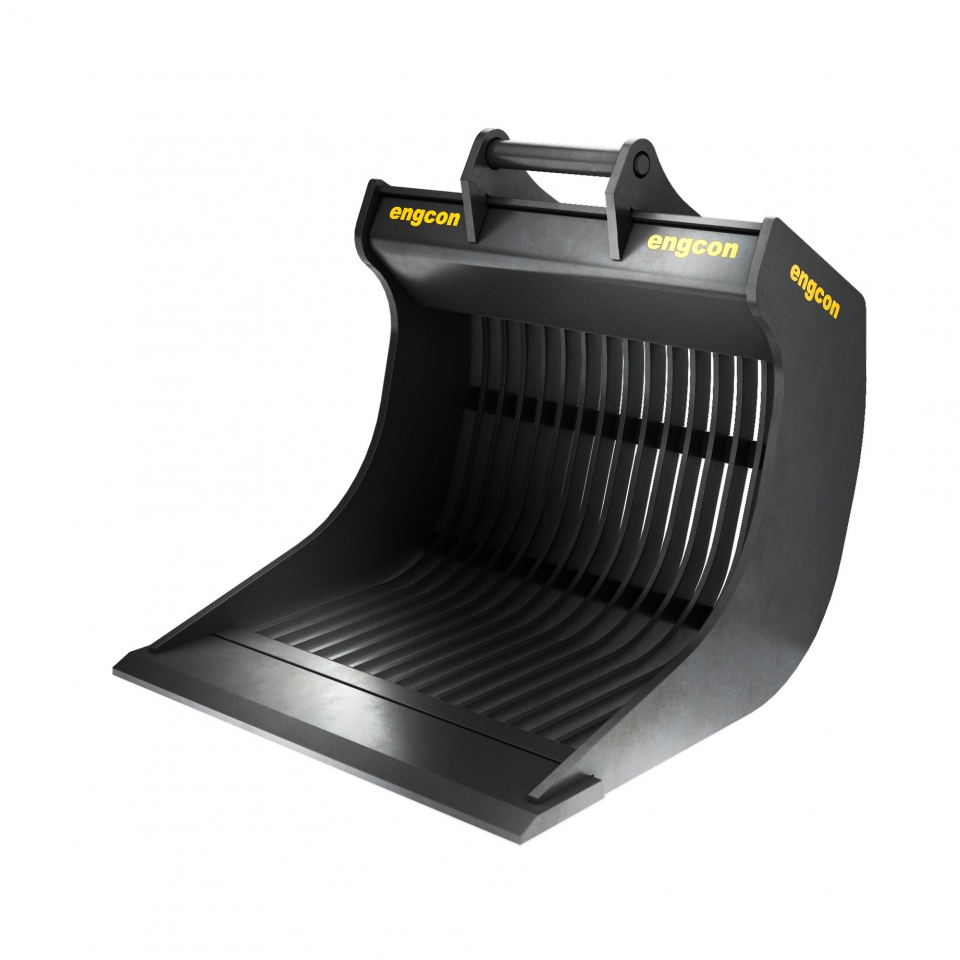

The illustration shows a typical configuration. Technical data may vary.
We reserve the right to make changes without prior notice.
Product Specifications
SKB02 | SKB04 | SKB06 | SKB09 | SKB14 | SKB17 | SKB23 | |
|---|---|---|---|---|---|---|---|
Width [mm]: | 600 | 600 | 800 | 1000 | 1300 | 1300 | 1500 |
Weight [kg]: | 52 | 108 | 168 | 296 | 502 | 608 | 1098 |
Volume [l]: | 70 | 170 | 220 | 400 | 620 | 850 | 1300 |
Gap [mm]: | 44 | 41 | 47 | 51 | 62 | 62 | 62 |
Mounting: | S30 | S40 | S45 | S45 | S60 | S60 | S70 |
Base machine weight [t]: | 1.5–3 | 2–4 | 6–7 | 7–12 | 13–14 | 16–18 | 22–26 |
