SB02—SB24
For excavators weighing 1.5—26 tons
The Engcon series of riddle buckets is designed for quick, simple sorting.
The riddle buckets require no hydraulics; they are built from the highest quality steel where the cutters and steel ribs have a hardness of 500 Brinell – the same high quality that can be found on every Engcon bucket.
All for increased efficiency and a long service life.

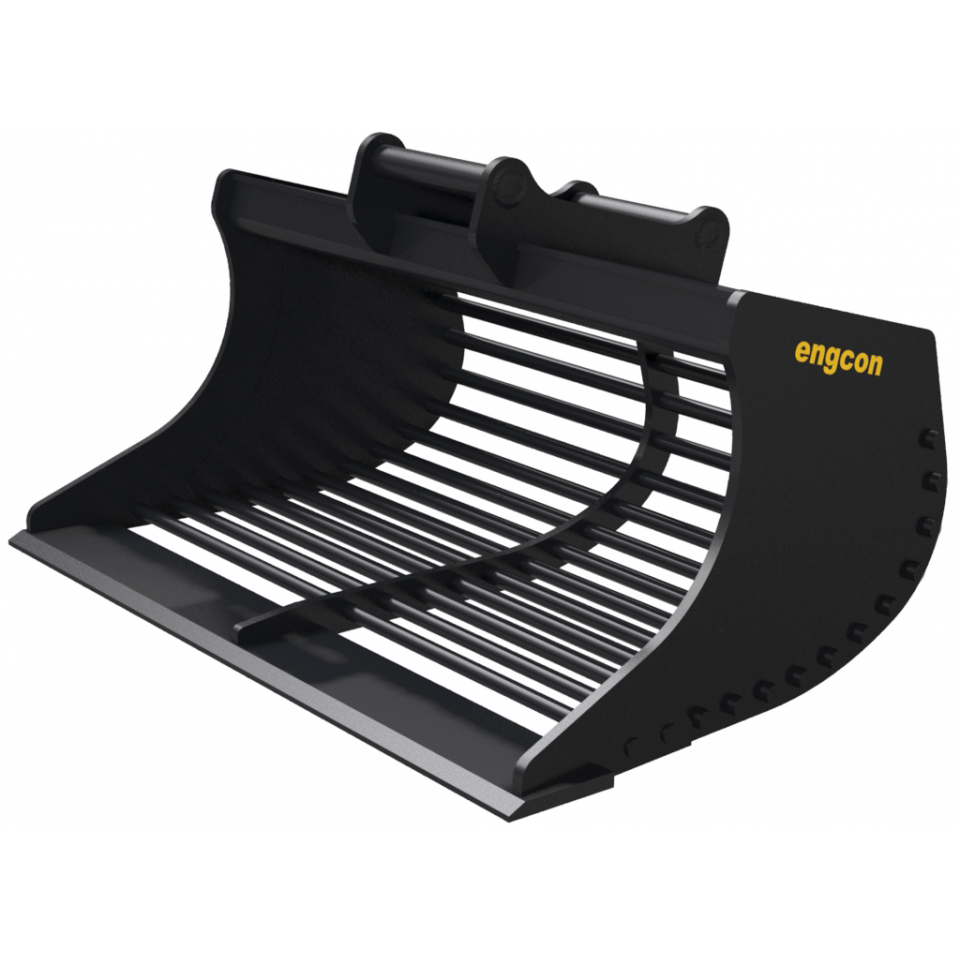

The illustration shows a typical configuration. Technical data may vary.
We reserve the right to make changes without prior notice.
Product Specifications
SB02 | SB04 | SB06 | SB08 | SB14 | SB15 | SB20 | SB24 | |
|---|---|---|---|---|---|---|---|---|
Width [mm]: | 900 | 1000 | 1200 | 1300 | 1600 | 1600 | 1700 | 2000 |
Diameter [mm]: | 22 | 22 | 22 | 30 | 30 | 45 | 45 | 45 |
Weight [kg]: | 80, 91 | 144 | 166, 180 | 292 | 475 | 630 | 924 | 1050 |
Volume [l]: | 90, 130 | 200 | 300 | 370 | 650 | 750 | 1100 | 1400 |
Gap [mm]: | 40 | 50 | 50 | 50 | 50 | 65 | 70 | 70 |
Mounting: | S30, S40 | S40 | S40, S45 | S45 | S60 | S60 | S70 | S70 |
Base machine weight [t]: | 1.5–3 | 2–4 | 6–7 | 7–9 | 13–14 | 14–16 | 18–22 | 22–26 |
