GH1000—GH1200
For excavators weighing 6—33 tons
Engcon’s pallet fork is a robust and cleverly engineered design for best visibility. Tempered forks guarantee a long service life.
NOTE! Always consult the applicable safety instructions for using the pallet fork on each individual machine. When using the pallet fork together with a tiltrotator, a load-holding valve must be fitted to the tiltrotator.
All Engcon tiltrotators are fitted with load-holding valves in the tilt cylinders as standard equipment.
- Mechanical pallet forks are held in the correct position with a robust latch and the position is adjusted manually.
- Forged forks for increased durability and service life

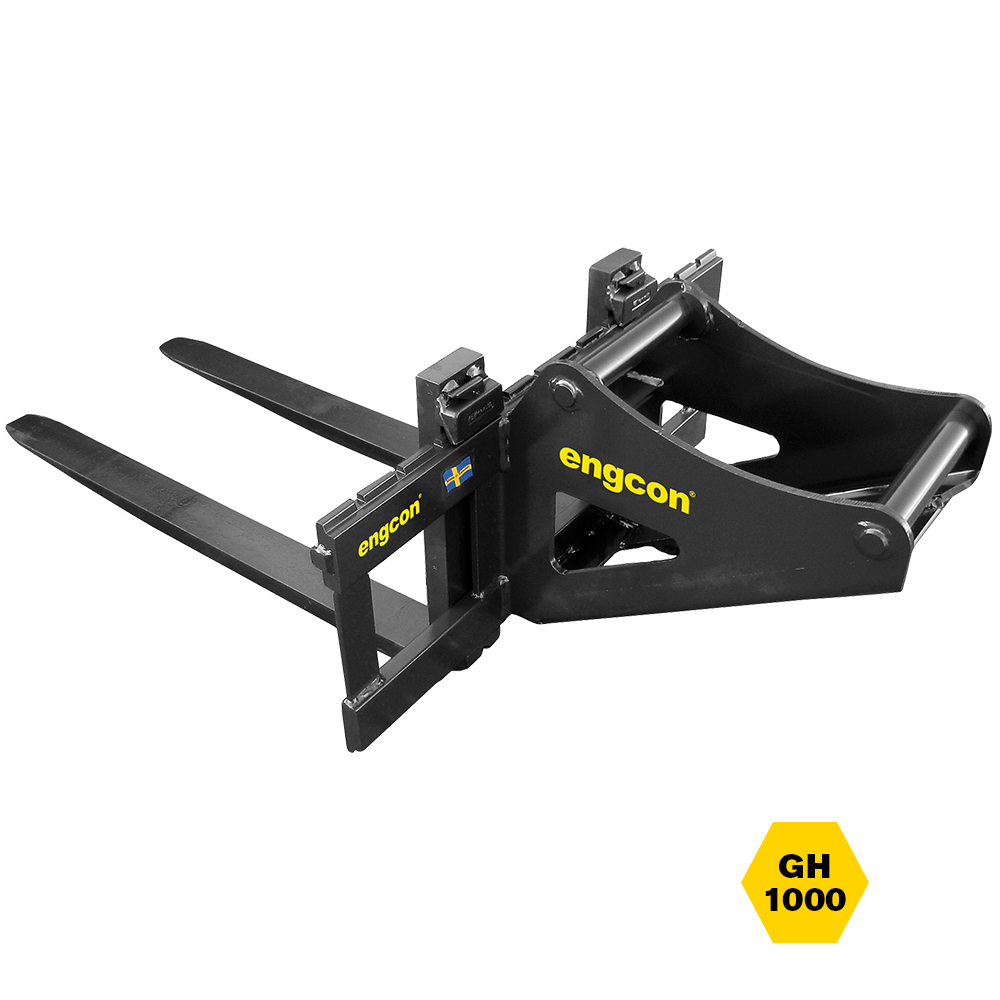

The illustration shows a typical configuration. Technical data may vary.
We reserve the right to make changes without prior notice.
Product Specifications
GH1000 | GH1200 | |
|---|---|---|
Width [mm]: | 1000 | 1200 |
Fork [mm]: | 100x40x1,200 | 125x45x1,200 |
Weight [kg]: | 180 | 360 |
Base machine weight [t]: | 6–14 | 14–33 |
TP500 [t]: | 2.9 | 5 |
