GH1000L
For excavators weighing 2—6 tons
The lightweight pallet fork is available in two versions, one hydraulic and the other mechanical, able to handle loads of 2 tonnes TP500, meaning it is classified for a 2 tonne load 500 mm from the rear of the tines. Estimated weights are 141 kg for the mechanical version and 151 kg for the hydraulic pallet fork, and the standard tine length is 800 mm.
The hydraulic version is designed for engcon’s EC-Oil automatic quick hitch system allowing the operator to connect the pallet fork and its hydraulics automatically without climbing out of the cab. The hydraulic pallet fork with EC-Oil is a perfect fit for the new EC206, which will be fitted with our automatic quick hitch under the tiltrotator this year.

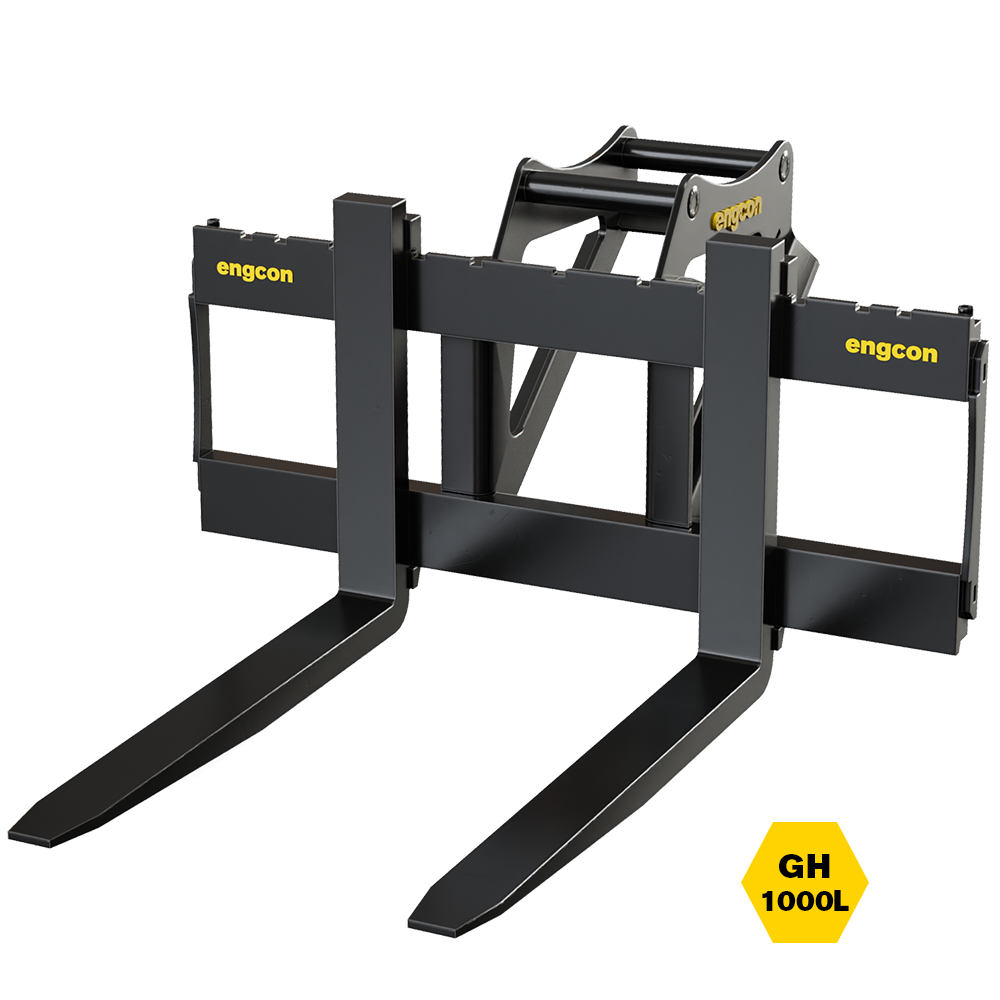

The illustration shows a typical configuration. Technical data may vary.
We reserve the right to make changes without prior notice.
Product Specifications
GH1000L | |
|---|---|
Width [mm]: | 1,000 |
Length [mm]: | 800 |
Fork [mm]: | 80x40x800 |
Weight [kg]: | 141 |
Fits hitch: | S40 |
Base machine weight [t]: | 2–6 |
TP500 [t]: | 2 |
