Deep-digging Buckets

DB02—DB32

For excavators weighing 1.5—33 tons

Engcon deep-digging bucket – Robust construction for tough jobs. A favourite for anyone needing to excavate and dig in difficult conditions where fast penetration and easy filling are prioritised, for example in trenching and other mass transfers requiring capacity. Like all Engcon buckets, the digging bucket has a long floor and cutaway sides to reduce drag when digging.

The bucket can be fitted with the following accessories on request:

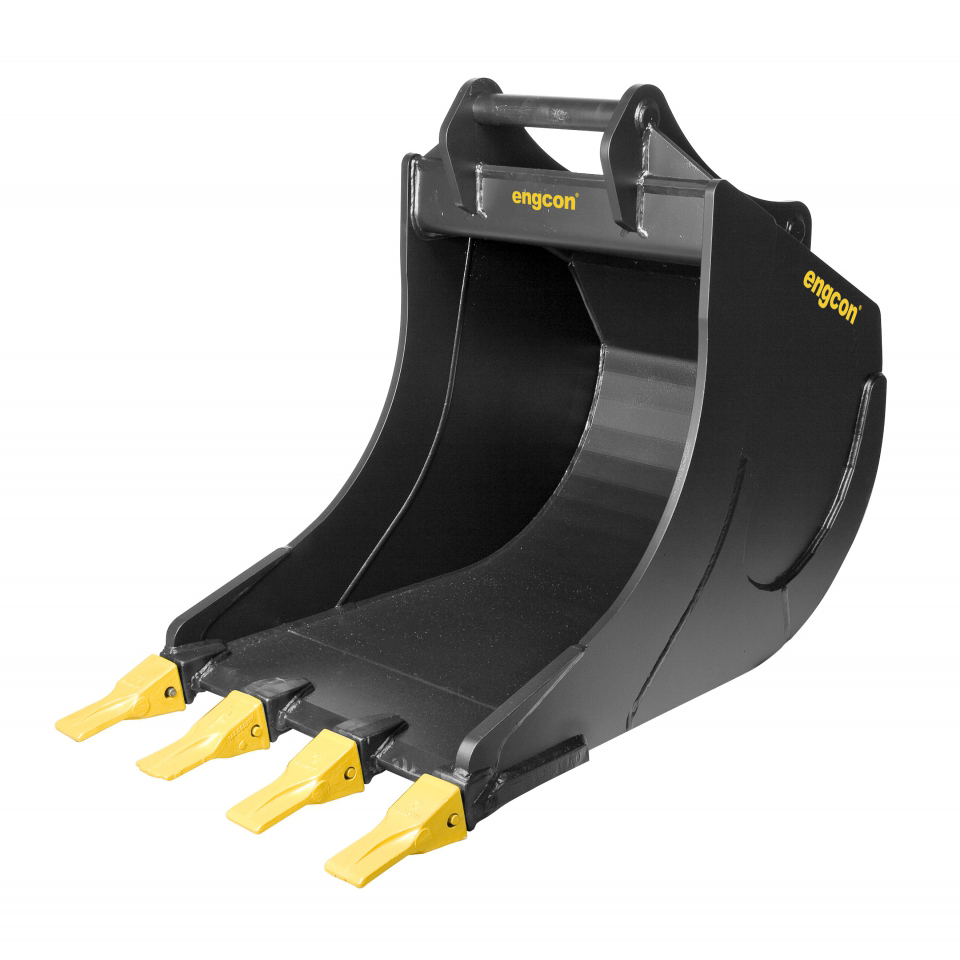

Tooth kit*

* When selecting a tooth kit, Engcon buckets are fitted with the Cat J system as standard equipment. For other tooth systems, check availability with Engcon.

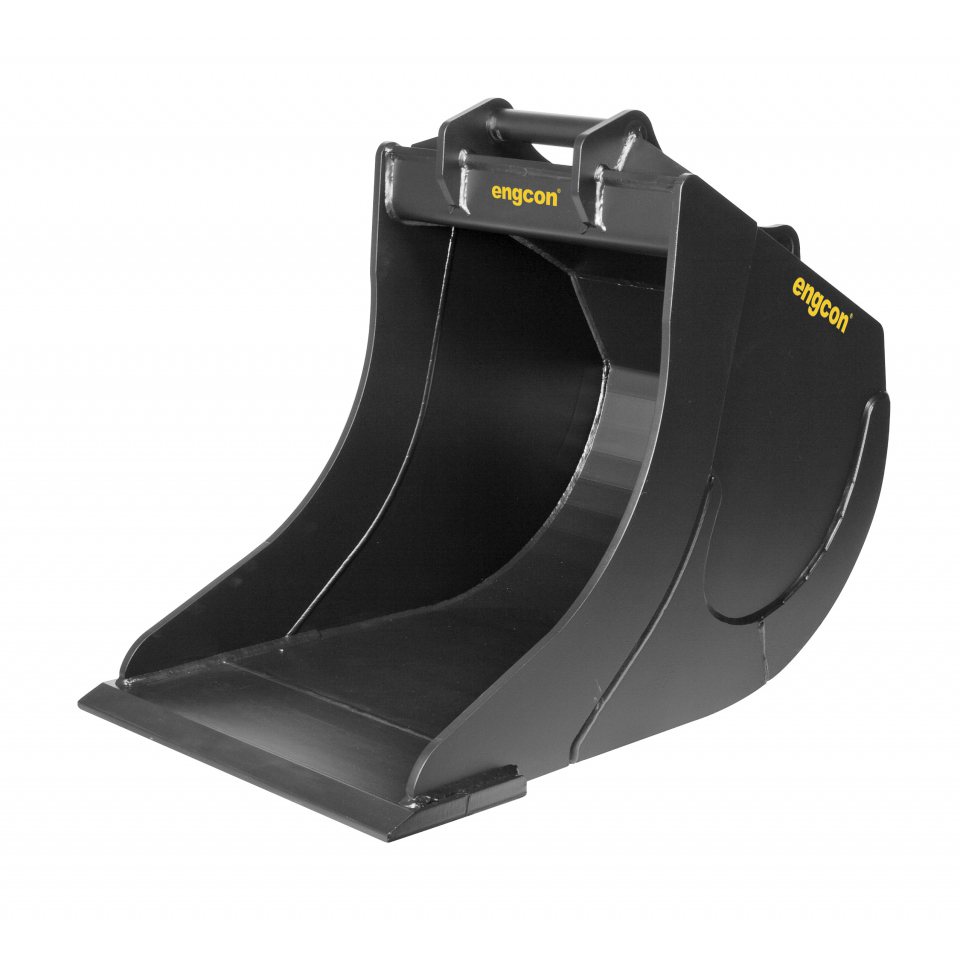

The illustration shows a typical configuration. Technical data may vary.

We reserve the right to make changes without prior notice.

Play Video

Product Specifications

	DB02	DB03	DB05	DB06	DB07	DB09	DB11	DB12
Width [mm]:	450, 550	550	600	600	700	700	700	800
Weight [kg]:	50, 60	76	105	124	180	280	290	342
Volume [l]:	70, 90	120	160	200	250	350	400	500
Mounting:	S30, S40	S40	S40	S40	S45	S45	S45	S60
Base machine weight [t]:	1.5–3	2–4	4–6	5–7	6–8	8–10	10–12	11–13

	DB13	DB14	DB16	DB18	DB21	DB26	DB29	DB32
Width [mm]:	850	900	1000	1000	1100	1300	1450	1700
Weight [kg]:	500	522	564	680	940	1330	1440	1720
Volume [l]:	600	650	750	900	1100	1400	1600	1800
Mounting:	S60	S60	S60	S60	S70	S70	S70	S80
Base machine weight [t]:	11–13	13–16	15–17	17–20	19–22	24–27	27–31	31–33
