SR800—SR2000
For excavators weighing 6—33 tons
Engcon’s sweeper rollers – Make the most of what the excavator has to offer and open up previously undreamed-of possibilities in a wide range of speciality areas. Regardless of whether you’re sweeping soil, sand, gravel or snow, the brush will very quickly become a favourite tool you just won’t be able to live without.
Areas such as road crossings, pedestrian walkways, tramway points, etc can be cleared as well as sweeping road sand and gravel, brushing grassed areas, foundations, rocks and more. The only limit is your imagination. A hydraulic motor provides the power and a chain drive which enables the brush rotation speed to be adjusted. The open design allows unsurpassed, service-friendly access, and the standard polypropylene brushes can be replaced quickly and easily.
Compatible with EC-Oil, allowing automatic connection without the operator having to leave the cab.
EC-Oil automatic quick hitch system is a standard. The sweeper roller can be connected without the driver having to leave the cab. Screwed bracket/attachment provides the opportunity to easily change the attachment as needed and reduces the need for dealers to have several sweeper rollers of the same size in stock.

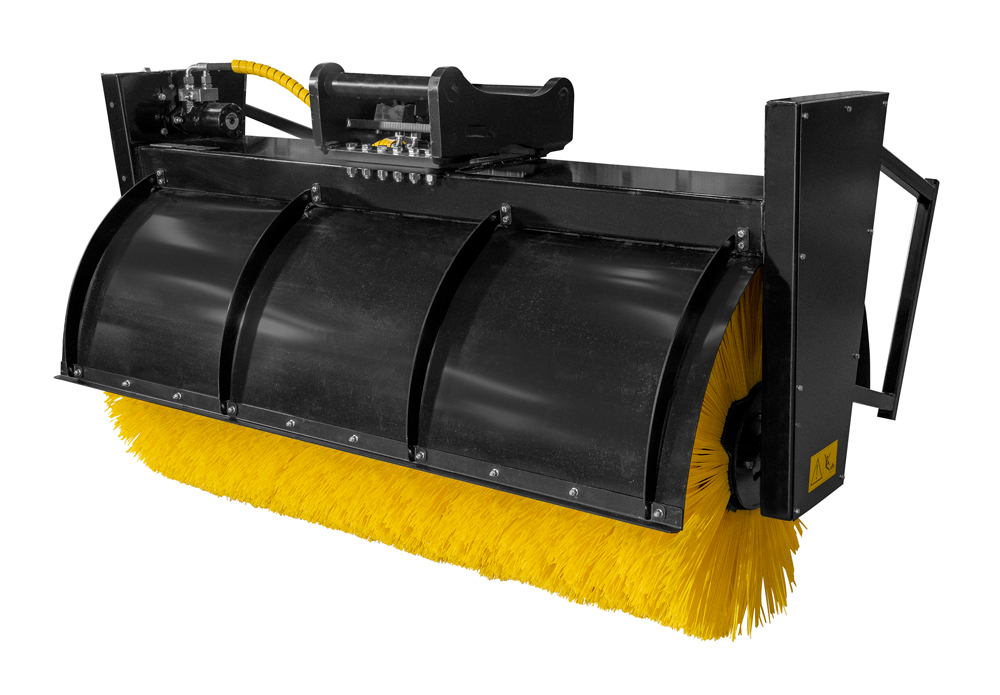

The illustration shows a typical configuration. Technical data may vary.
We reserve the right to make changes without prior notice.
Product Specifications
SR800 | SR1300 | SR1600 | SR1800 | SR2000 | |
|---|---|---|---|---|---|
Width [mm]: | 800 | 1,300 | 1,600 | 1,800 | 2,000 |
Height [mm]: | 1,257 | 1,257 | 1,257 | 1,257 | 1,257 |
Length [mm]: | 1,060 | 1,060 | 1,060 | 1,060 | 1,060 |
Weight (excluding adapter) [kg]: | 210 | 240 | 260 | 275 | 290 |
Hydraulic flow min/max: | 20/60 | 20/60 | 20/60 | 20/60 | 20/60 |
