MG12—MG20
For excavators weighing 7—26 tons
The grapple saw is a powerful tool and a great choice for you and your excavator. If you work in urban environments or in confined spaces with your excavator, this is a perfect complement to your tiltrotator.
Now you don’t have to climb trees or poles or use a platform to work near power lines. Instead, stay within the safety of the cab and connect the grapple saw with EC-Oil, cut your branches and lower them to the ground safely and securely. You save time and money!
- Automatic chain tensioning and proportional lubrication system.
- Fast and easy saw bar and chain replacement.
- SuperCut minimizes down time and increases productivity.
- Built in bar feed cylinder.
- Sequence controlled saw function.
- Saw activating valve included.
- Simple installation on excavator.
- Prepared for EC-Oil. *
* To operate both grapple and saw requires two EC-Oil blocks.

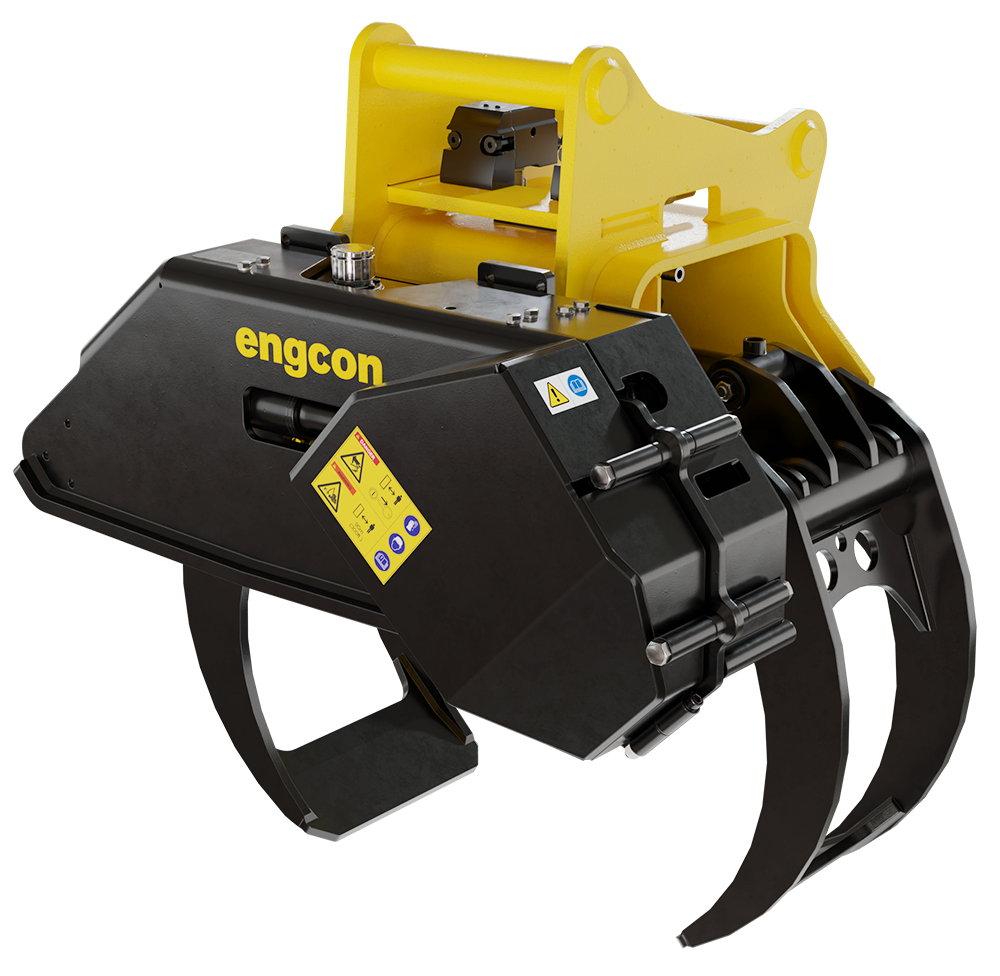

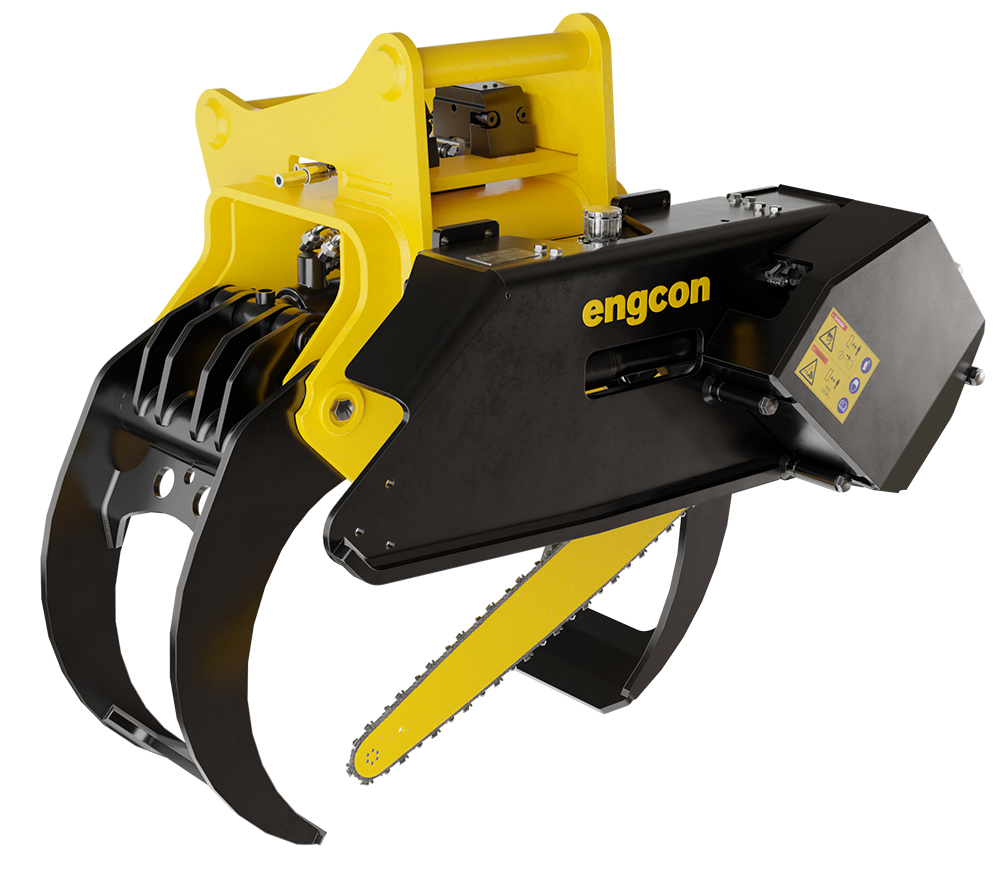

The illustration shows a typical configuration. Technical data may vary.
We reserve the right to make changes without prior notice.
Product Specifications
MG12 | MG16 | MG20 | |
|---|---|---|---|
Grab width A, min [mm]: | 82 | 94 | 179 |
Grab width A, max [mm]: | 1,496 | 1,509 | 2,275 |
Width B [mm]: | 454 | 531 | 531 |
Weight [kg]: | 560 | 660 | 850 |
Grab area [m²]: | 0.26 | 0.36 | 0.52 |
Max hydraulic pressure [MPa]: | 25 | 25 | 25 |
Max load [kg]: | 4,000 | 5,000 | 6,000 |
Fits hitch: | S45 | S60 | S70 |
Base machine weight [t]: | 7–12 | 12-19 | 19-26 |
