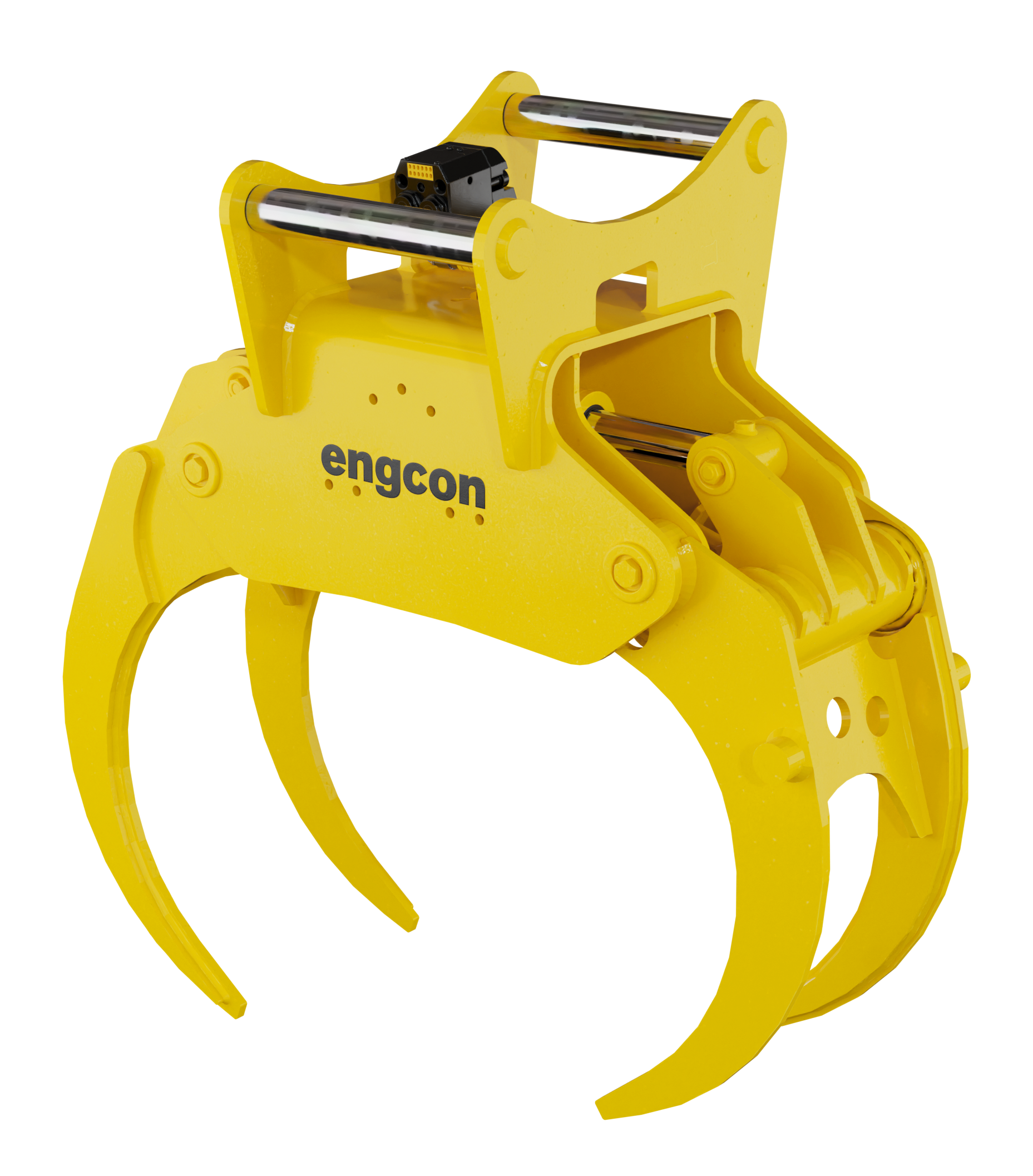

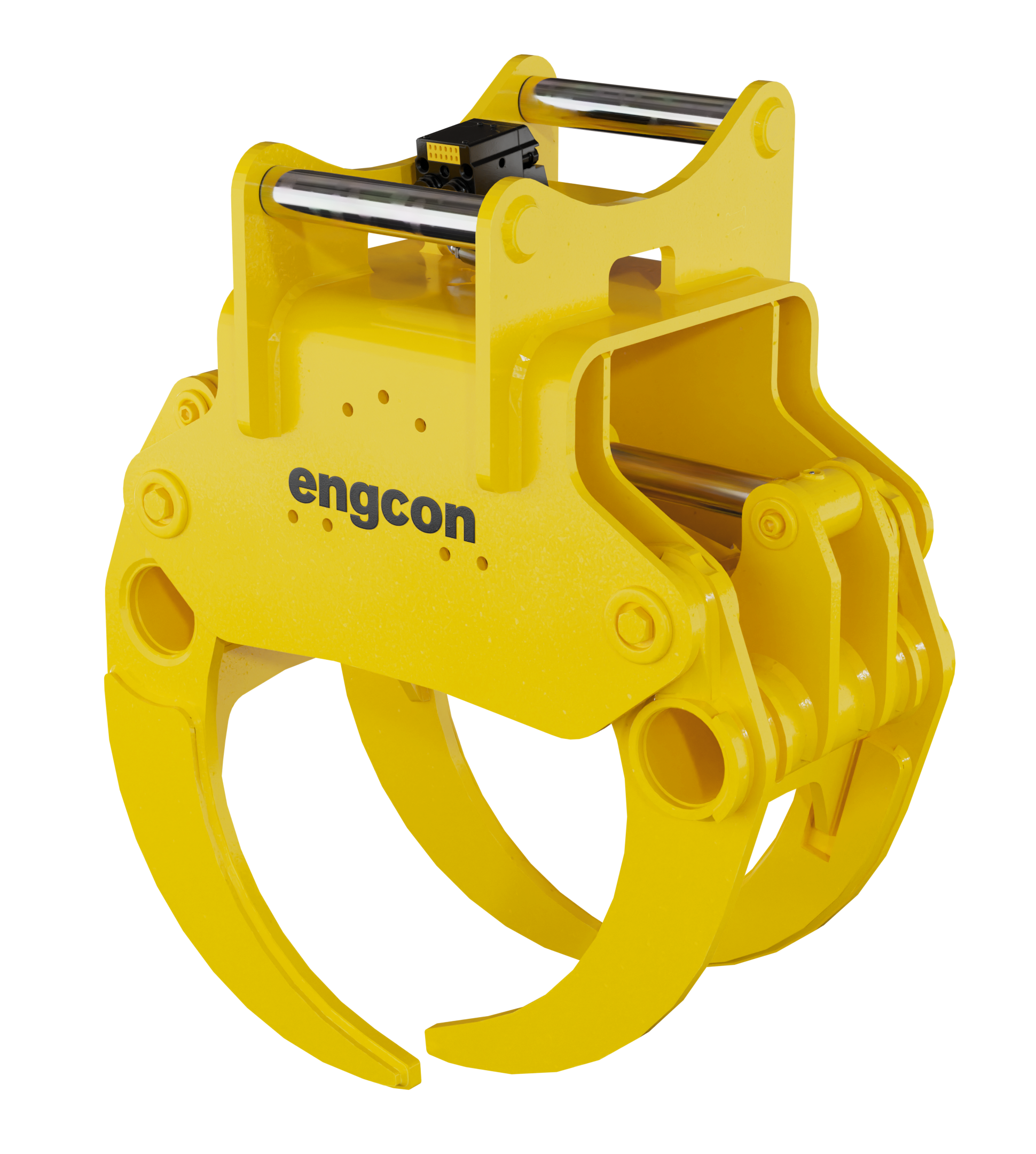

FG12R—FG20R
For excavators weighing 9—22 tons
Our finger grab* is the next level in handling brush, twigs and branches. With reinforced arms, it’s built for demanding tasks.
Say goodbye to jamming problems – the finger grip opens smoothly every time so you can lift what you need without the problem of debris. And stay calm in the cab as the grapple comes with EC-Oil as standard.
EC-Oil – the key to our system
It allows you to quickly change hydraulic attachments or disconnect the tiltrotator if you need more breakout force. And in seconds, and directly from the cab. The EC-Oil automatic oil coupling is now our standard.
* In cooperation with Hultdins AB.
The illustration shows a typical configuration. Technical data may vary.
We reserve the right to make changes without prior notice.
Product Specifications
FG12R | FG16R | FG20R | |
|---|---|---|---|
Weight [kg]: | 315 | 474 | 560 |
Max load [kg]: | 6,000 | 8,000 | 10,000 |
Grab area (tip–tip) [m2]: | 0.26 | 0.36 | 0.52 |
Max grab width, A [mm]: | 1,496 | 1,822 | 2,279 |
Min gripping diameter, A [mm] | 82 | 94 | 179 |
Max width, B [mm] | 454 | 531 | 531 |
Quick hitch standard: | S45 | S60 | S70 |
Base machine weight [t]: | 9–14 | 12–18 | 16–22 |
Prepared for EC-Oil: | YES | YES | YES |
