SWD40—SWD60
For excavators weighing 4—19 tons
Just like with the gripper cassette, the rotating brushes can be retrofitted simply on the quick hitch by being hooked onto the hitch’s two mounting hooks. The rotating brushes are then locked and connected to the hydraulics in a single action – quick and easy.

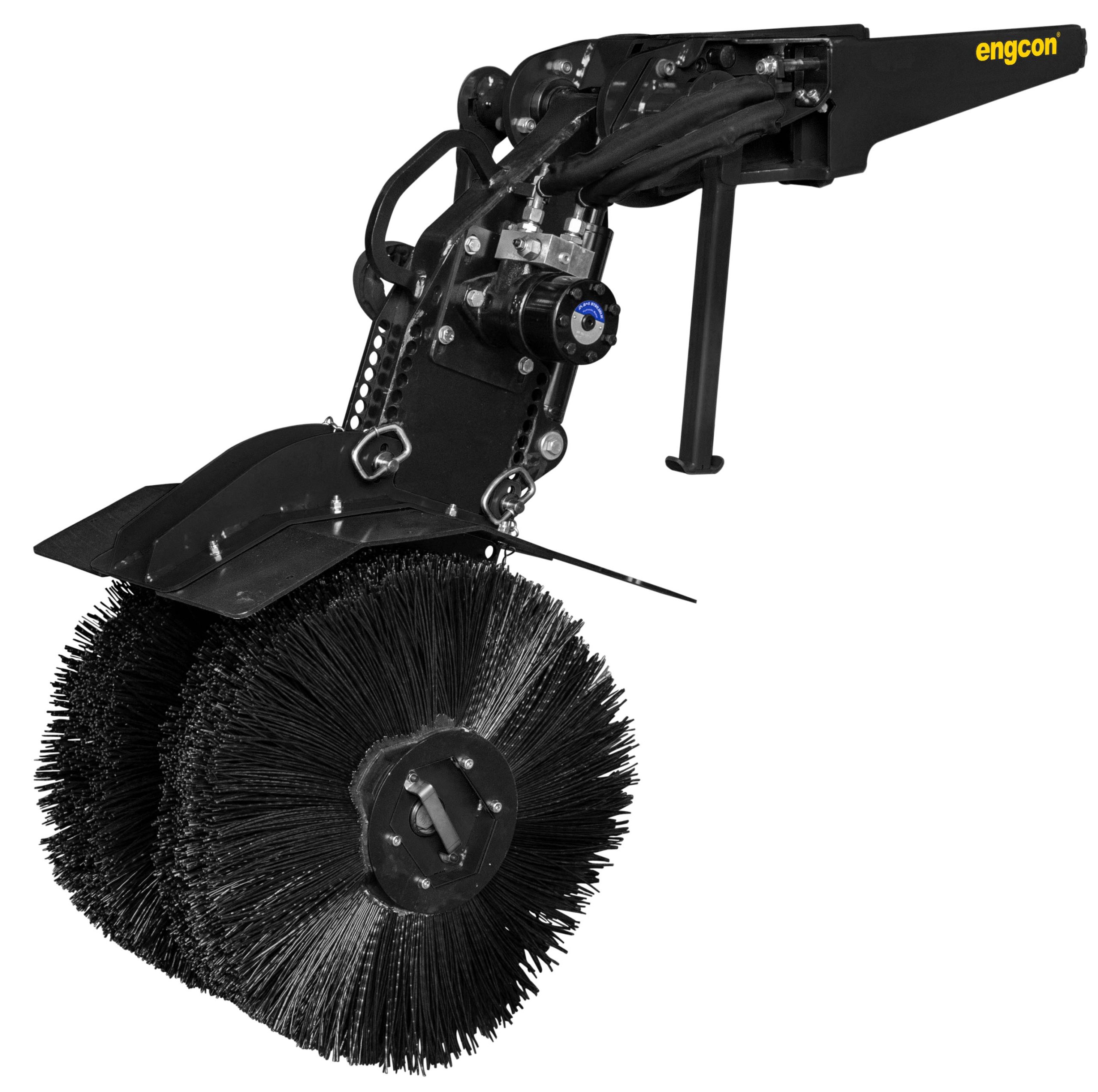

Engcon’s sweeper is driven by a powerful hydraulic motor and is raised or lowered by a hydraulic ram. The sweeper is flexible and its width can be adjusted for the job in hand, from cable sweeping to sweeping large areas. This reduces the need for manual labour and makes a safer workplace. The sweeper is available in several widths and is adapted for the new Engcon quick hitch.
The illustration shows a typical configuration. Technical data may vary.
We reserve the right to make changes without prior notice.
Product Specifications
SWD40 | SWD45 | SWD60 | |
|---|---|---|---|
Length, cassette A [mm]: | 451 | 586 | 665 |
Length, arm B [mm]: | 843 | 875 | 975 |
Width, cassette C [mm]: | 314 | 362 | 423 |
Width, guard D [mm]: | 340/1,200 | 450/1,400 | 450/1,600 |
Height, guard E [mm]: | 660 | 660 | 660 |
Max weight [kg]: | 127 | 186 | 210 |
Max total length A+F [mm]: | 1,525 | 1,710 | 1,998 |
Diameter, brush G [mm]: | 600/700 | 600/700 | 600/700/915 |
Width, brush H [mm]: | 320/1,200 | 420/1,400 | 420/1,600 |
Oil flow min/max [l/min]: | 20/50 | 20/60 | 20/60 |
Fits hitch: | S40 | S45 | S60 |
