GRD40—GRD70
For Excavators Weighing 2—30 Tons

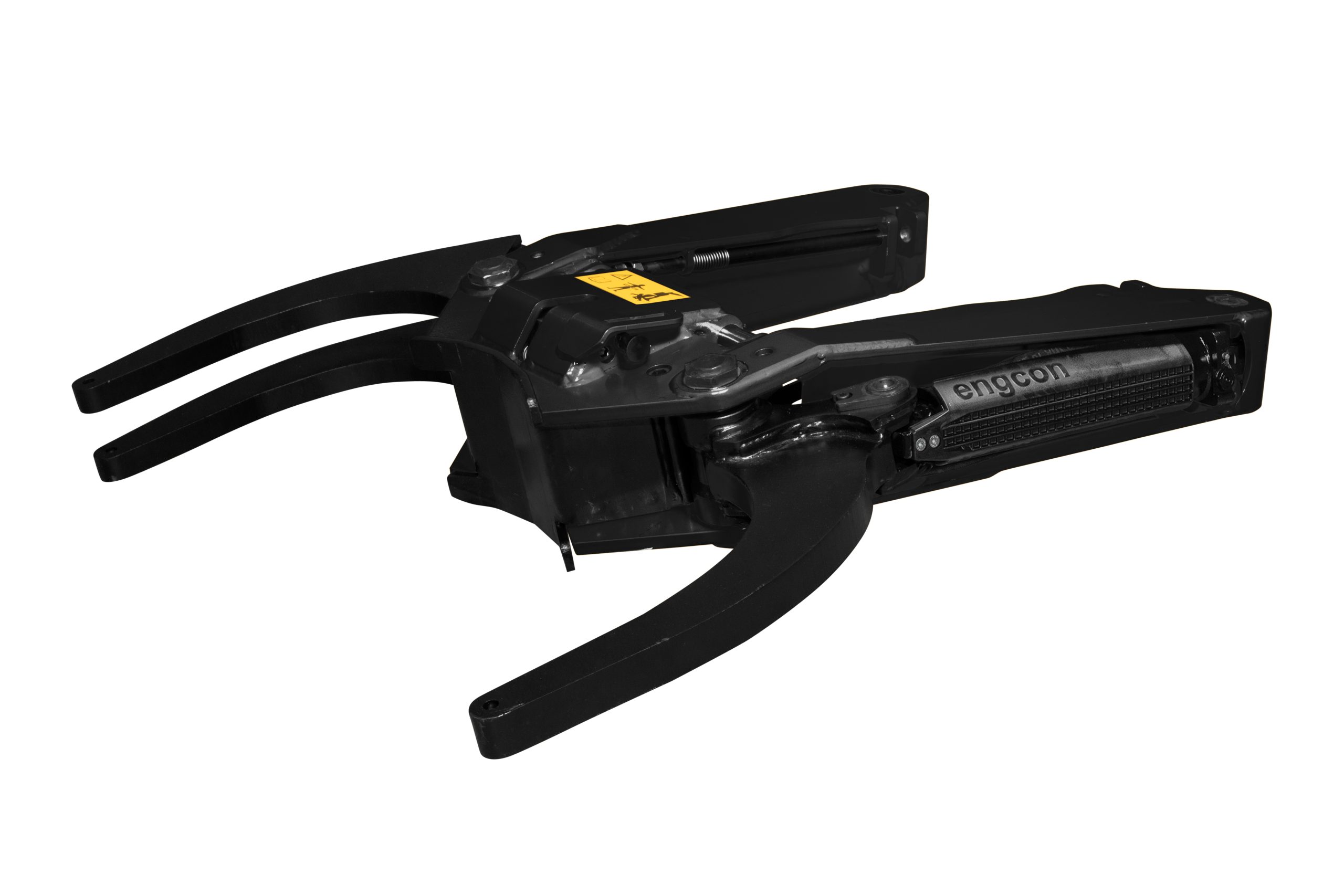

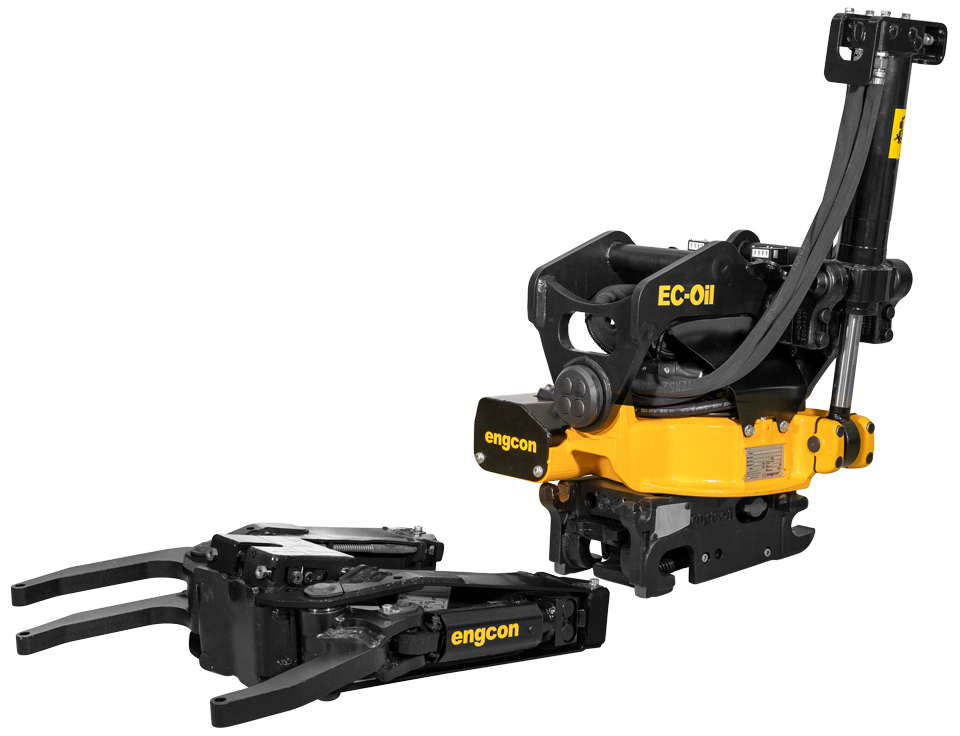

Engcon’s detachable gripper is also retrofitable. The gripper cassette simply hooks onto the quick hitch and is then locked in place and the hydraulics connected in a single action – a procedure that takes less than a minute. The gripper is angled at 15 degrees to the plane of rotation, giving a longer reach.

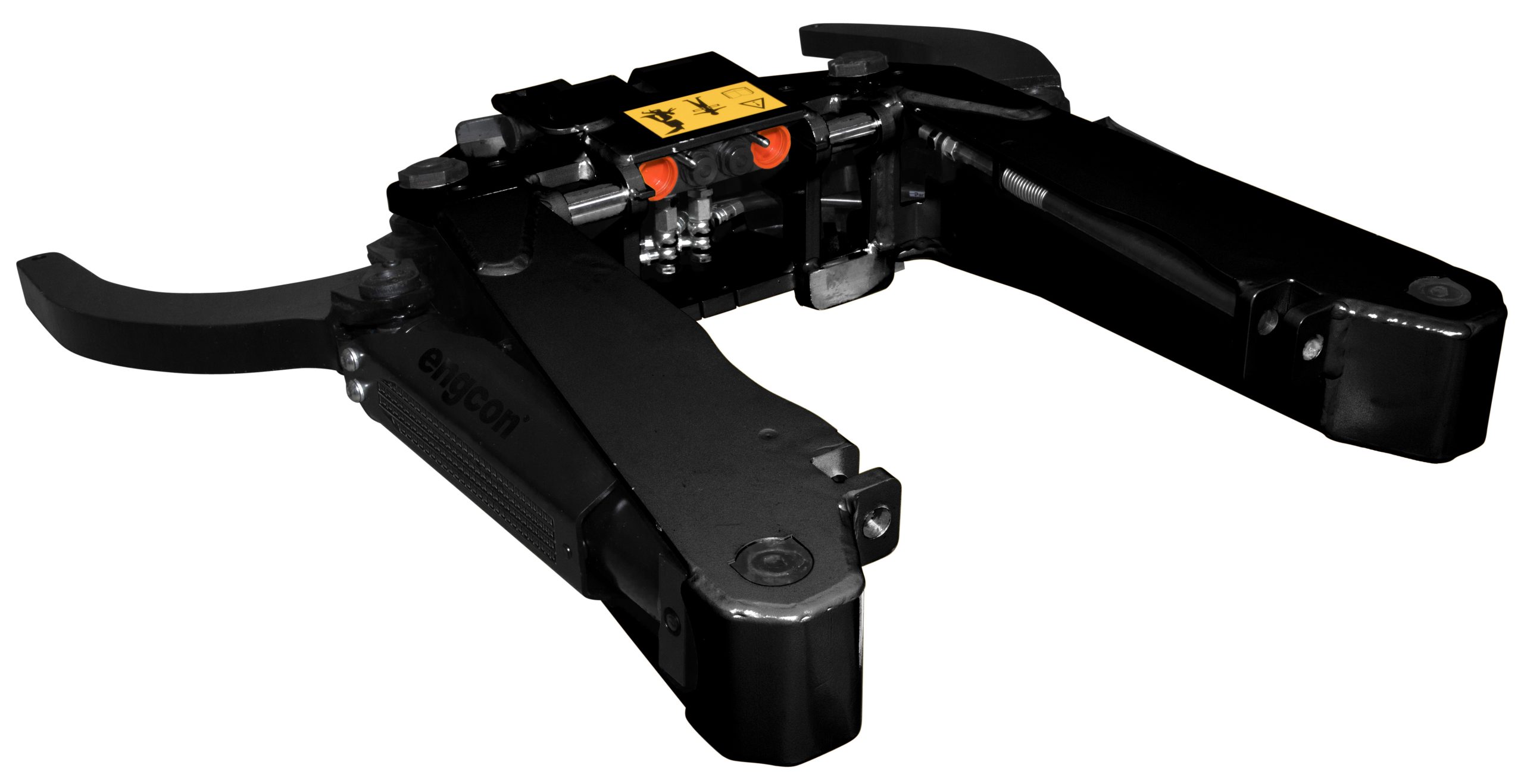

Quick locking
The gripper cassette is locked and the hydraulics connected in one action using a 32 mm open-ended spanner. This allows the cassette to be attached or detached in less than a minute.
The illustration shows a typical configuration. Technical data may vary.
We reserve the right to make changes without prior notice.
Product Specifications
GRD40 | GRD45 | GRD60 | GRD70 | |
|---|---|---|---|---|
Grab Width A, max [mm]: | 430 | 610 | 820 | 950 |
Width B [mm]: | 220 | 270 | 355 | 410 |
Length C [mm]: | 540 | 720 | 870 | 900 |
Weight [kg]: | 45 | 99 | 143 | 158 |
Gripping force (tip-tip) at 3200 psi [kg]: | 1200 | 1500 | 2200 | 2200 |
Max hydraulic pressure [MPa]: | 22 | 22 | 22 | 22 |
Max load [kg]: | 1000 | 1500 | 2000 | 2000 |
Fits hitch: | S40 | S45 | S60 | S70 |
