TG25HD—TG55HD
For Excavators weighing 4—33 tons
Together with the tiltrotator, Engcon’s combi Timber Grab Heavy Duty is the ultimate tool for round timber and pipe handling, and light sorting jobs. The grabs, which are reinforced with high-strength steel wear bars with a hardness of 400 Brinell for long life, can be used with a wide variety of hitches.
Advantages:
- The EC-Oil automatic quick hitch system connects the hydraulics without the operator needing to leave the cab
- Grab arms in high-strength steel for increased life
- Grab tip wear bars with 400 Brinell hardness for best durability
- A non-return valve built into the ram and an direct-mounted accumulator ensure the load is secure should any pressure drop occur.
- Expander bolts in joints prevent unnecessary play
- Bolt-on bracket/mounting makes switching brackets easy

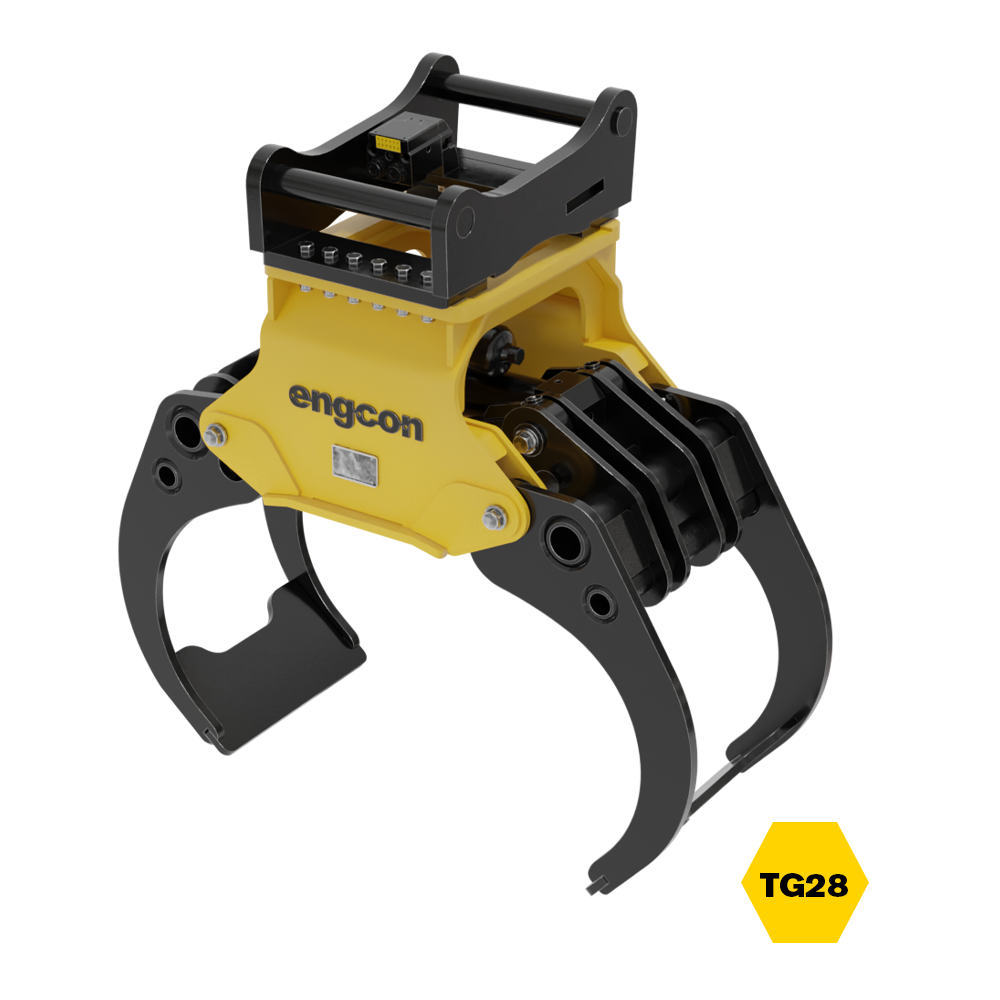

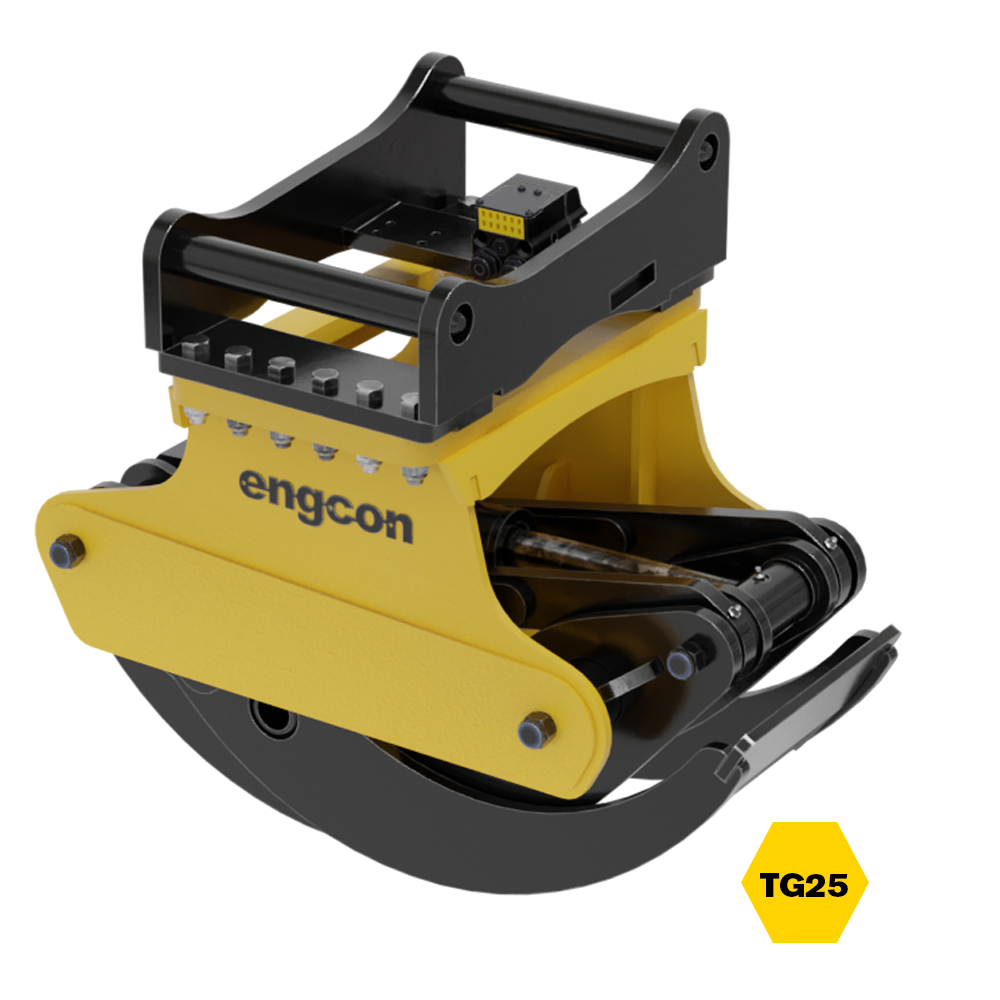

The illustration shows a typical configuration. Technical data may vary.
We reserve the right to make changes without prior notice.
Product Specifications
TG25HD | TG28HD | TG42HD | TG55HD | |
|---|---|---|---|---|
Width [mm]: | 460 | 595 | 677 | 802 |
Grab Width A, min [mm]: | 42 | 93 | 82 | 151 |
Grab Width A, max [mm]: | 1,557 | 1,540 | 2,080 | 2,510 |
Height, fully open/closed [mm]: | 759/526 | 889/659 | 1,039/751 | 1,146/946 |
Weight [kg]: | 195 | 360 | 595 | 1,070 |
Grab area [m²]: | 0.25 | 0.28 | 0.42 | 0.55 |
Gripping force (tip – tip) at 3200 psi [kg]: | 700 | 1,300 | 2,100 | 3,200 |
Max hydraulic pressure [MPa]: | 22 | 22 | 22 | 22 |
Max load [kg]: | 3,000 | 5,000 | 6,000 | 10,000 |
Base machine weight [t]: | 4-9 | 9-14 | 12-19 | 19-33 |
