Series 3 is the ultimate tiltrotator experience with future-ready technology, featuring personalized settings and prepared for advanced functions such as return-to-zero, with upgrade capability for tool recognition.
The most advanced tiltrotator option for excavators up to 33 metric tons. It delivers more responsive digging and increased precision, making excavation work smoother, smarter and more efficient. Load-sensing hydraulics and energy-efficient technology can save 30% or more energy compared to Series 2. It is ready for electric machines and is sold as a complete engcon system.
Series 3 offers unlimited rotation and a tilt angle of up to ±45°, ensuring maximum flexibility in all conditions. EC-Oil comes as standard, allowing hydraulic tools to be connected from the cab.
The system comes with tilt- and rotation sensors pre-installed and supports detachable tools such as gripper and sweeper.
Series 3 also offers advanced functionality, Bluetooth connectivity and app support for iOS and Android. It supports direct mounting or sandwich solutions and comes with S-Type hydraulic quick hitches as standard.
For machines weighing 4-33 metric tons.

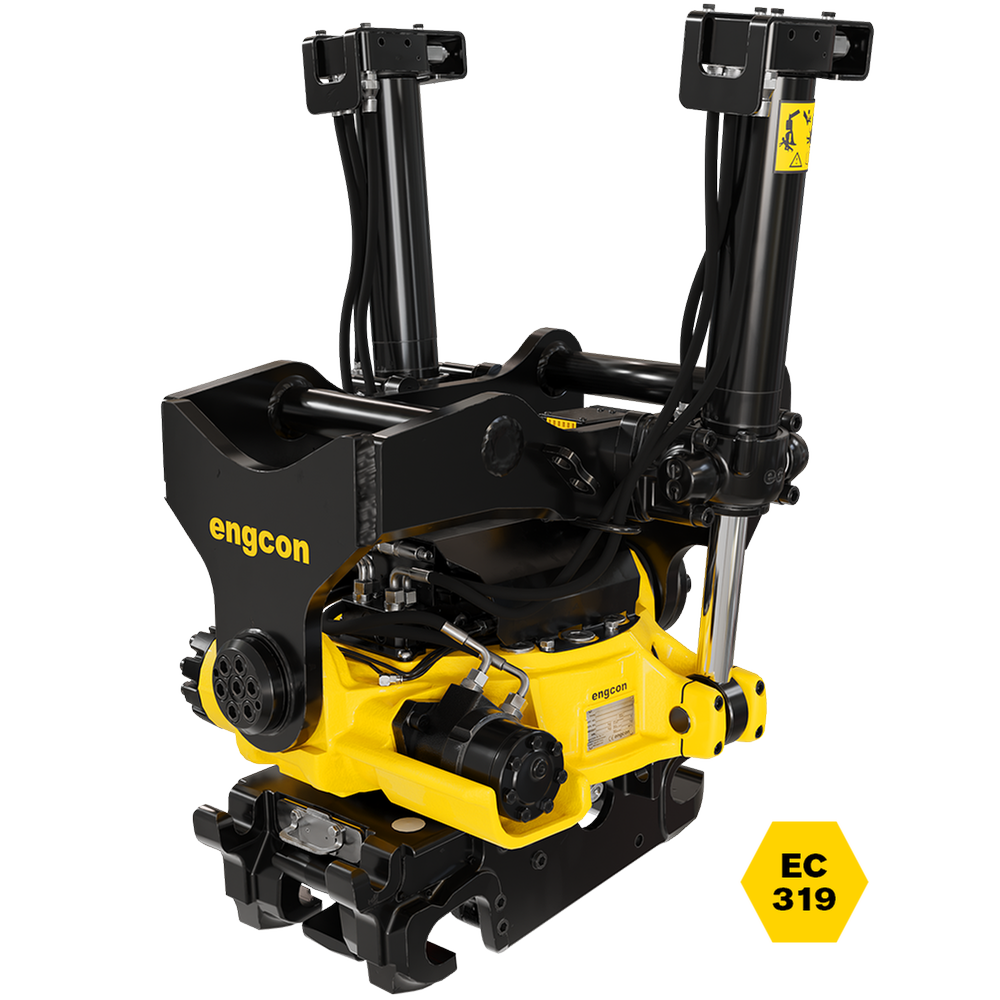

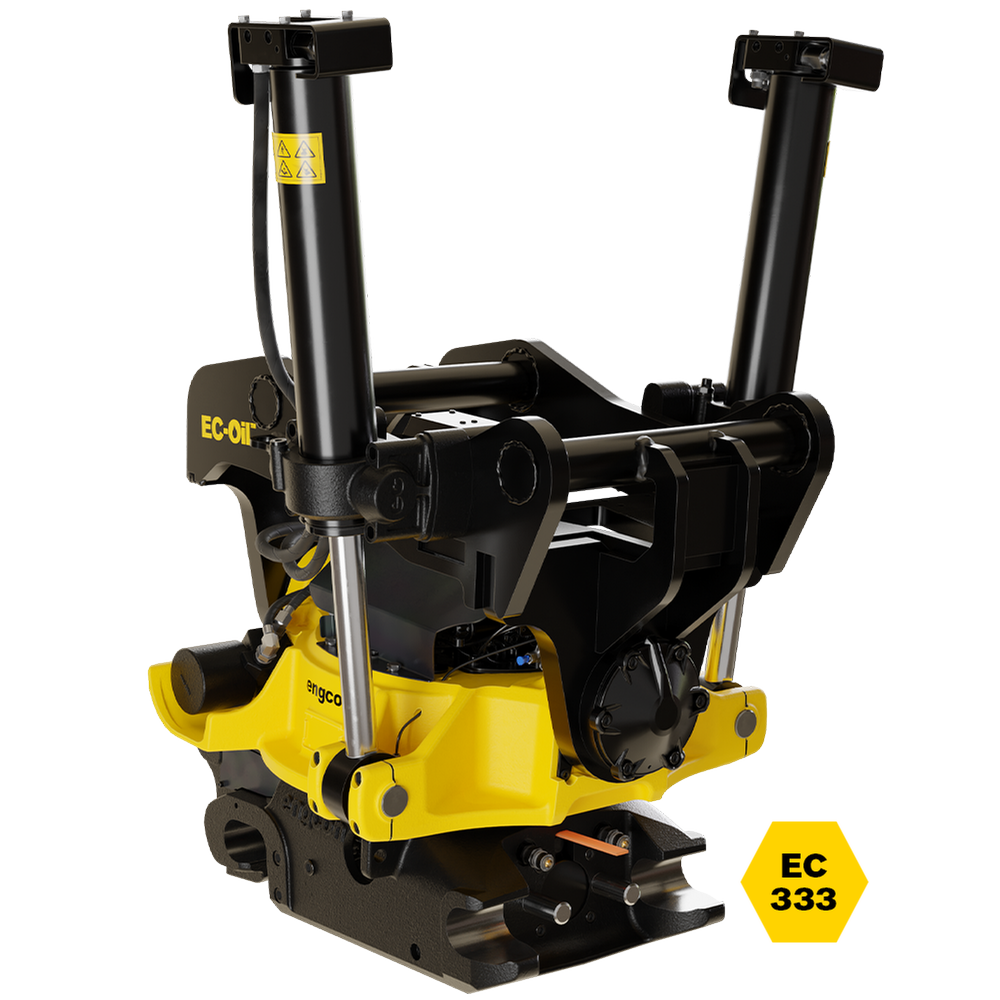

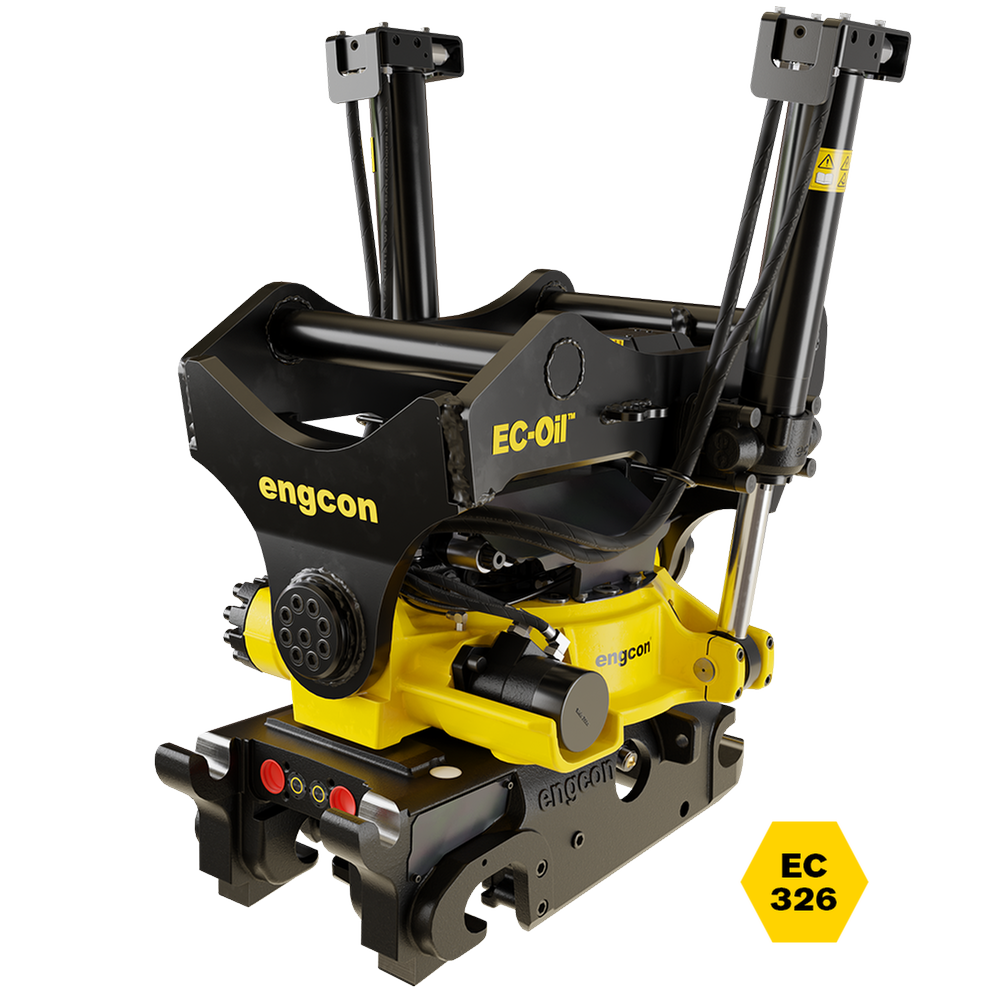

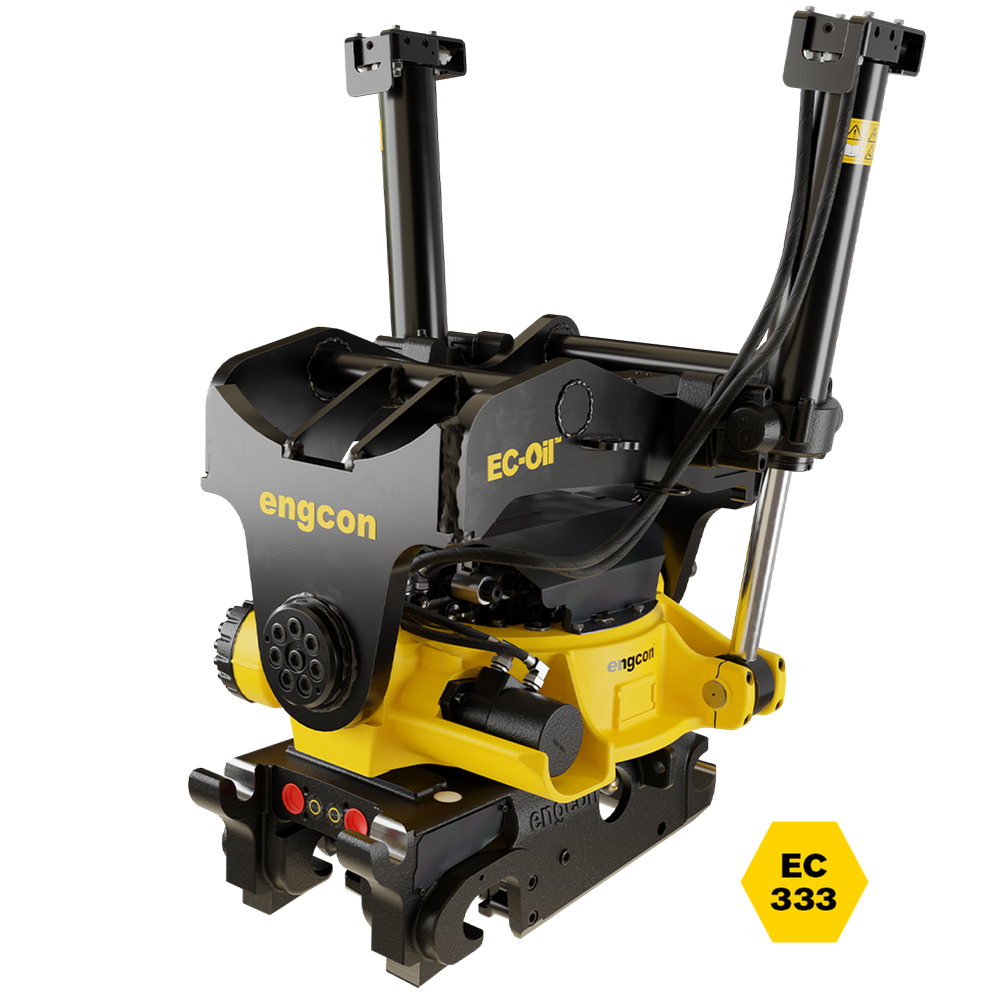

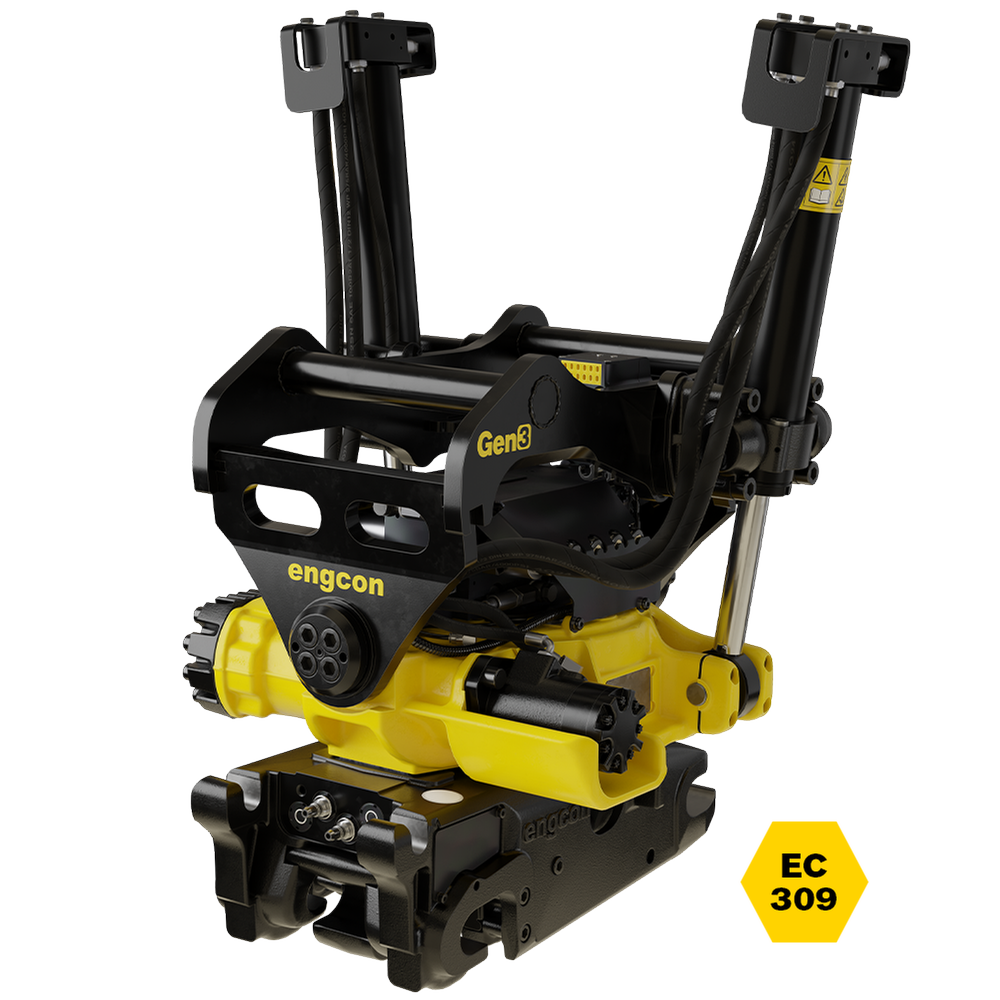

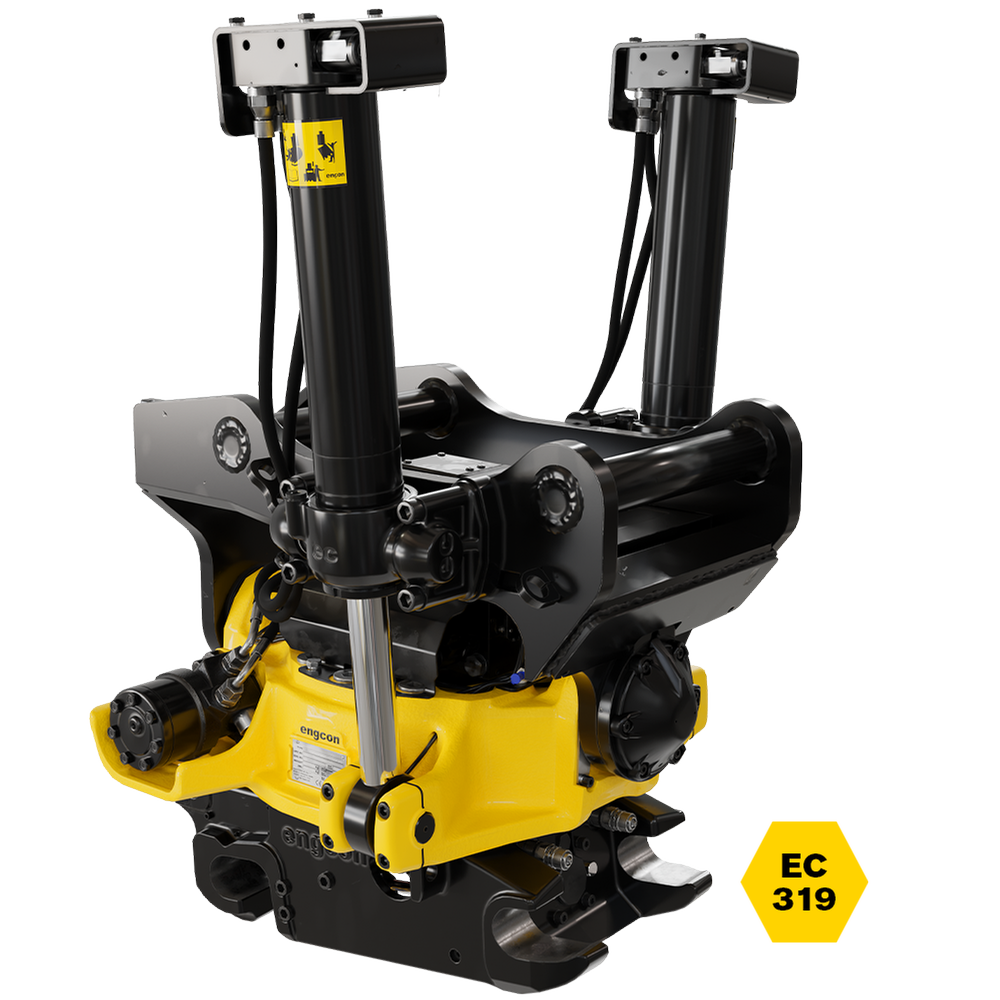

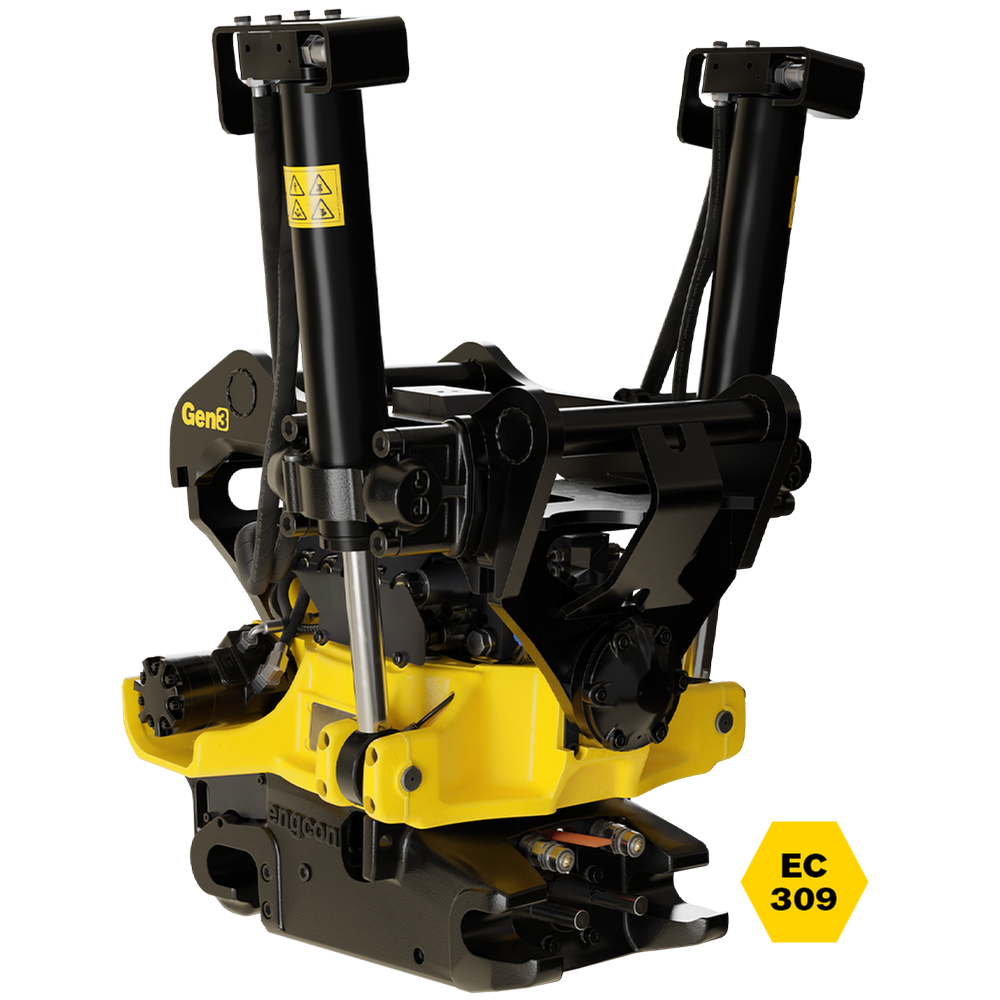

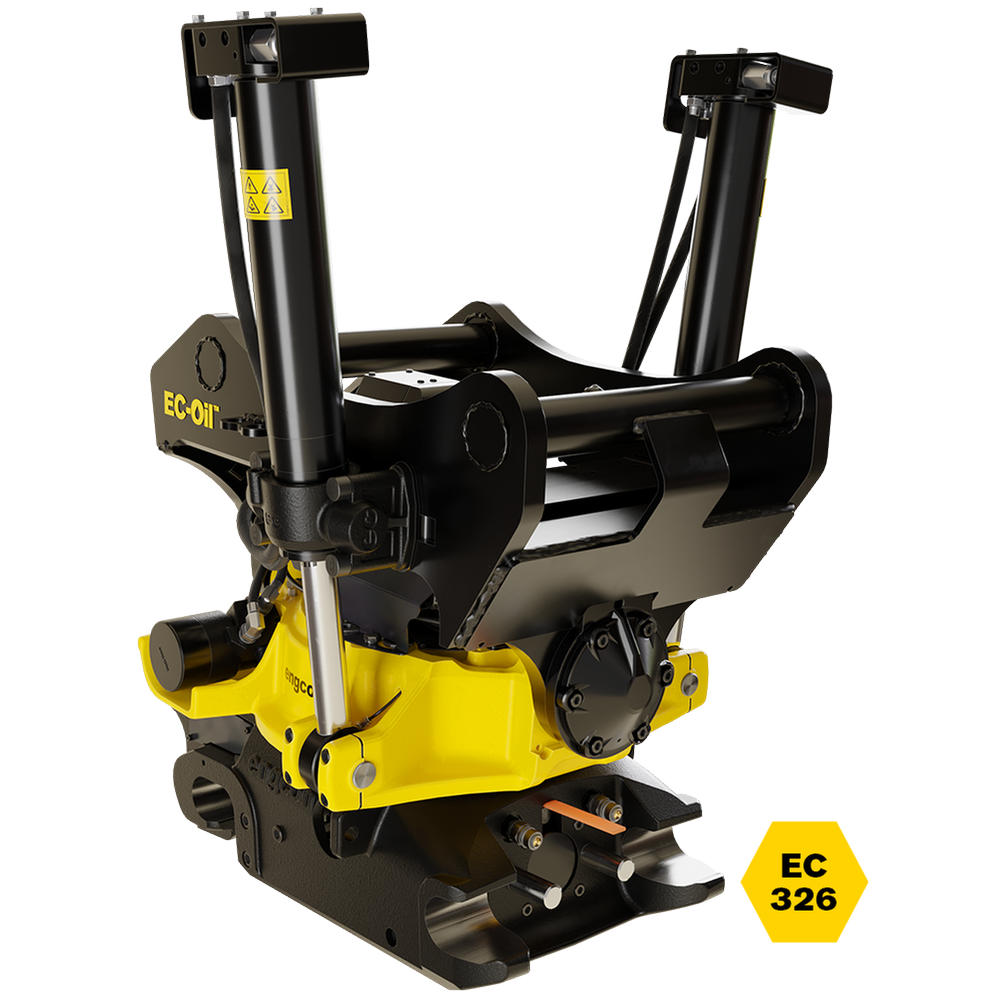

EC306 | EC309 | EC314 | EC319 | EC326 | EC333 | |
|---|---|---|---|---|---|---|
Width, A (mm) | 289 | 342 | 355 | 392 | 447 | 501/581 |
Width B (mm) | 220 | 250 | 285 | 315 | 340 | 385 |
Width C (mm) | 219 | 273 | 303 | 310 | 340 | 385 |
Total length D (mm) | 500 | 561 | 665 | 745 | 760 | 878 |
Build height E (mm) | 410 | 485 | 508 | 517 | 638 | 720 |
Weight (kg) * | – | 294 | 440 | 541 | 810 | 1,015 |
Tilt (°) | 2×45° | 2×45° | 2×45° | 2×45° | 2×45° | 2×45° |
Recommended hydraulic flow SS9 tilt/rotation (l/min) | 40 | 60 | 120 | 120 | 160 | 160 |
Max hydraulic pressure, Aux (MPa) | 22 | 22 | 22 | 22 | 22 | 22 |
Max bucket width rec engcon (mm) | 1,200 | 1,300 | 1,600 | 1,700 | 2,000 | 2,200 |
Max breakout torque (kNm) | 45 | 74 | 126 | 186 | 270 | 340 |
Direct connect | ✓ | ✓ | – | – | – | – |
Quick hitch standard | S40 | S45 | S60 | S60 | S70 | S70, S80 |
Base machine weight (t) | 4-6 | 6-9 | 9-14 | 14-19 | 19-26 | 24-33 |
* Based on standard
Working with a tiltrotator saves time, cuts the fuel consumption, reduces the need for manpower and machine wear, and the precision of the manoeuvres makes you waste less material.
A tiltrotator also increases safety around the machine due to its high manoeuvrability and low space requirements. It significantly reduces the need for manual work, for instance the use of shovels and rakes.

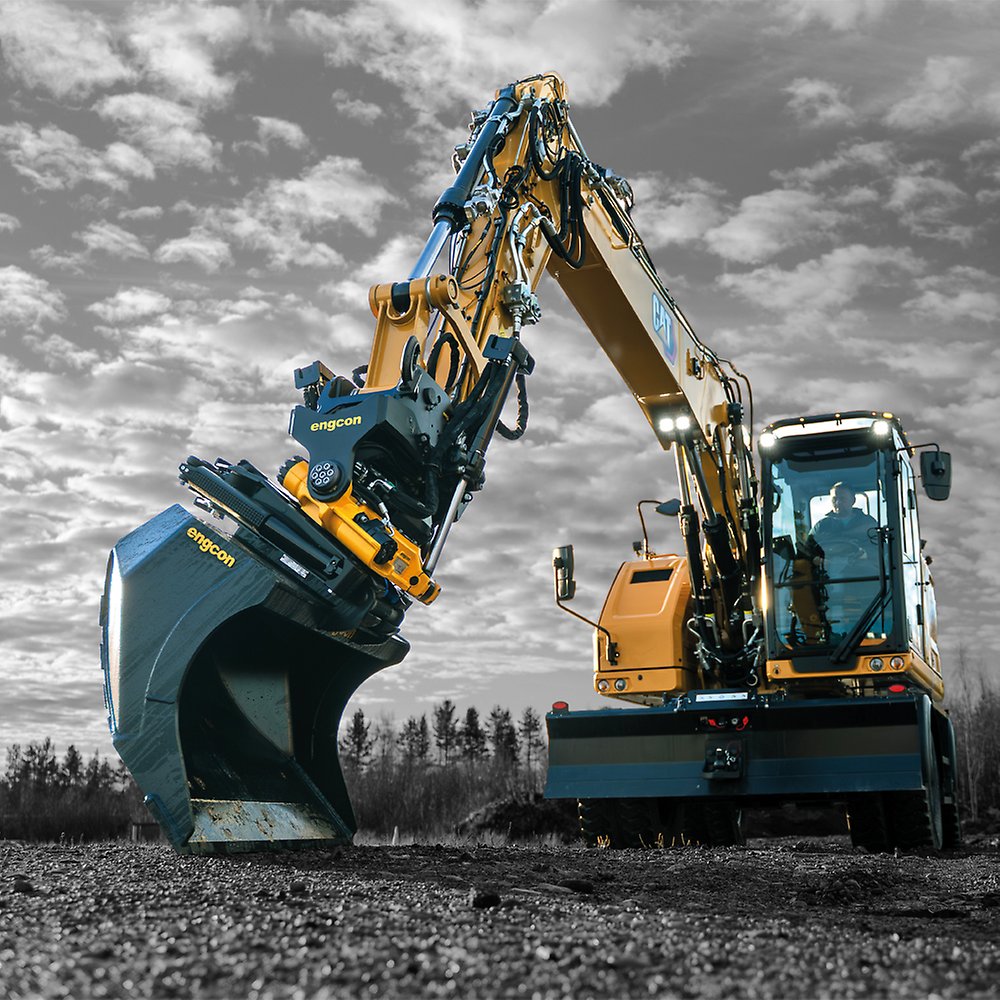

The tiltrotator easily tilts and rotates attachments as required, regardless of the machine’s position. In addition to ordinary buckets, the machine can also be fitted with many different tools and replace several other machines at the same work site.
The reduced need to move the machine around means greatly reduced environmental impact by cutting fuel consumption and at the same time less damage to the ground. Since you can dig around obstacles and in narrow spaces, there’s less need to move obstructing objects.
With a tiltrotator and EC-Oil system, the operator retains control and comfort in the working environment without leaving the cabin to attach hydraulic tools, which also increases safety.
